| ब्रांड नाम: | Winsmart |
| मॉडल संख्या: | एसएमटीआर-330 |
| मूक: | 1 सेट |
| कीमत: | USD1-10000/Set |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| भुगतान की शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| Model No | SMTR-330 | SMTR-460 | SMTR-250D |
|---|---|---|---|
| PCB Size (mm) | (50x50)-(460x330) | (50x50)-(530x390) | (50x50)-(350x250) |
| Machine Size (mm) | 1000x890x1000 | 1000x1100x1000 | 1000x1600x1000 |
| Weight (kg) | 100 | 120 | 140 |

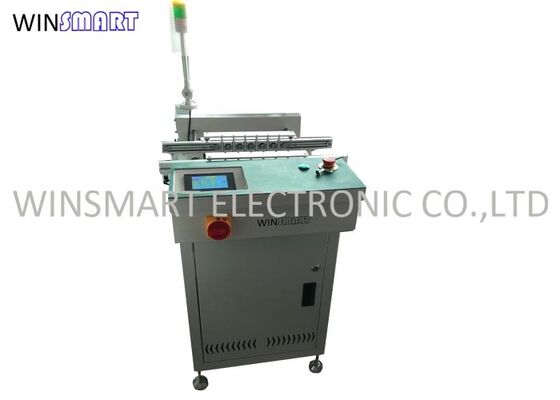

| Function | This machine is used to store NG and OK boards after inspection machine (SPI/AOI) and pass OK boards to the next process. NG boards are directed to the upper conveyor for visual inspection. |
|---|---|
| Power Supply | 100-240V AC, 1 phase |
| Conveyor Belt Type | Round belt |
| Transport Height | 900±20mm (customizable) |
| Transport Direction | Left to Right or Right to Left |
| PCB Thickness | Minimum 0.6mm |
|
|
| ब्रांड नाम: | Winsmart |
| मॉडल संख्या: | एसएमटीआर-330 |
| मूक: | 1 सेट |
| कीमत: | USD1-10000/Set |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| भुगतान की शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| Model No | SMTR-330 | SMTR-460 | SMTR-250D |
|---|---|---|---|
| PCB Size (mm) | (50x50)-(460x330) | (50x50)-(530x390) | (50x50)-(350x250) |
| Machine Size (mm) | 1000x890x1000 | 1000x1100x1000 | 1000x1600x1000 |
| Weight (kg) | 100 | 120 | 140 |
| Function | This machine is used to store NG and OK boards after inspection machine (SPI/AOI) and pass OK boards to the next process. NG boards are directed to the upper conveyor for visual inspection. |
|---|---|
| Power Supply | 100-240V AC, 1 phase |
| Conveyor Belt Type | Round belt |
| Transport Height | 900±20mm (customizable) |
| Transport Direction | Left to Right or Right to Left |
| PCB Thickness | Minimum 0.6mm |
