| ब्रांड नाम: | Winsmart |
| मॉडल संख्या: | एसएमटीडी3 |
| मूक: | 1 सेट |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| भुगतान की शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |

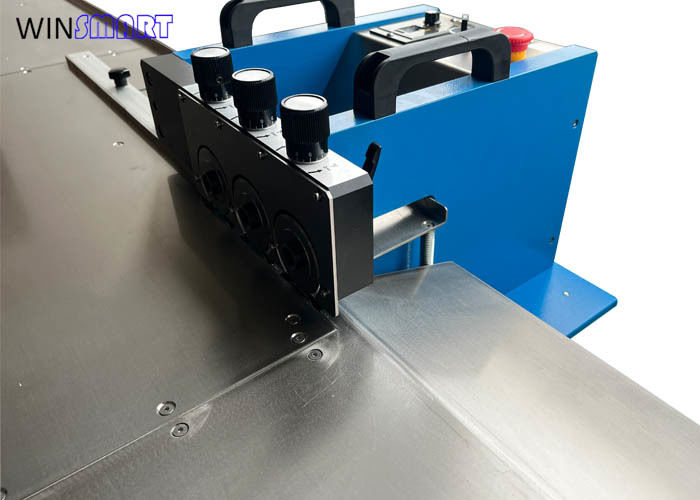

3-group 1200mm Aluminum PCB Separator Machine with Adjustable Cutting Speed
Aluminum PCB Separator Introduction:
The 3-Group Cutter Aluminum PCB Separator is a specialized depaneling machine designed for high-precision, low-stress separation of aluminum-based PCBs, particularly used in LED lighting and power electronics. Featuring three groups of circular blades, this machine enables multi-stage progressive cutting, effectively reducing mechanical stress and preventing microcracks or component damage during the depaneling process.
This separator is ideal for medium to long-format aluminum PCBs, offering a balance between speed, accuracy, and durability. The progressive cutting design ensures smooth edges and high consistency across the entire panel, making it a preferred solution for mass production lines requiring robust quality control.
Aluminum PCB Separator Features:
1. Multiple blades cut several lines simultaneously, greatly improving productivity.
2. Prevents microcracks and component damage by minimizing mechanical stress.
3. Flexible blade positioning to accommodate different panel designs and cut lines.
4. Ensures smooth, burr-free edges suitable for aluminum or FR4-based LED PCBs.
5. Rigid frame design with vibration-free operation ensures long-term reliability.
Aluminum PCB Separator Specification:
| Model | SMTD3 |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| Warranty | 12 months |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 50kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 75kgs |
Aluminum PCB Separator Functions:
3-groups cutters cutting one V-scoring line to reduce cutting stress.
Adjustable cutting speeds.
Supports max 130mm PCB width.
Customized larger version is available.
Adjustable cutting speed to match material type and production needs.
Blade Height Adjustment
Accommodates varying board thicknesses and component placements.
|
